Single Action Pneumatic Actuator
>
Hard Anodizing Single Action Pneumatic Actuator Simple Effect Pneumatic Valve Actuator
|
Hard Anodizing Single Action Pneumatic Actuator Simple Effect Pneumatic Valve Actuator
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Name:
Single Action Pneumatic Actuator
Material:
Aluminum Alloy
Structure:
Rack & Pinion
Power:
Pneumatic
Temperature:
Normal Temperature,Low Temperature,High Temperature
Media:
Hydraulic Oil Or Water
Color:
Red.blue,gray,according To Customer's Requirements,customized
Size:
32mm To 400mm
Highlight:
Hard Anodizing Single Action Pneumatic Actuator
,Simple Effect Pneumatic Valve Actuator
,Hard Anodizing Pneumatic Valve Actuator
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description

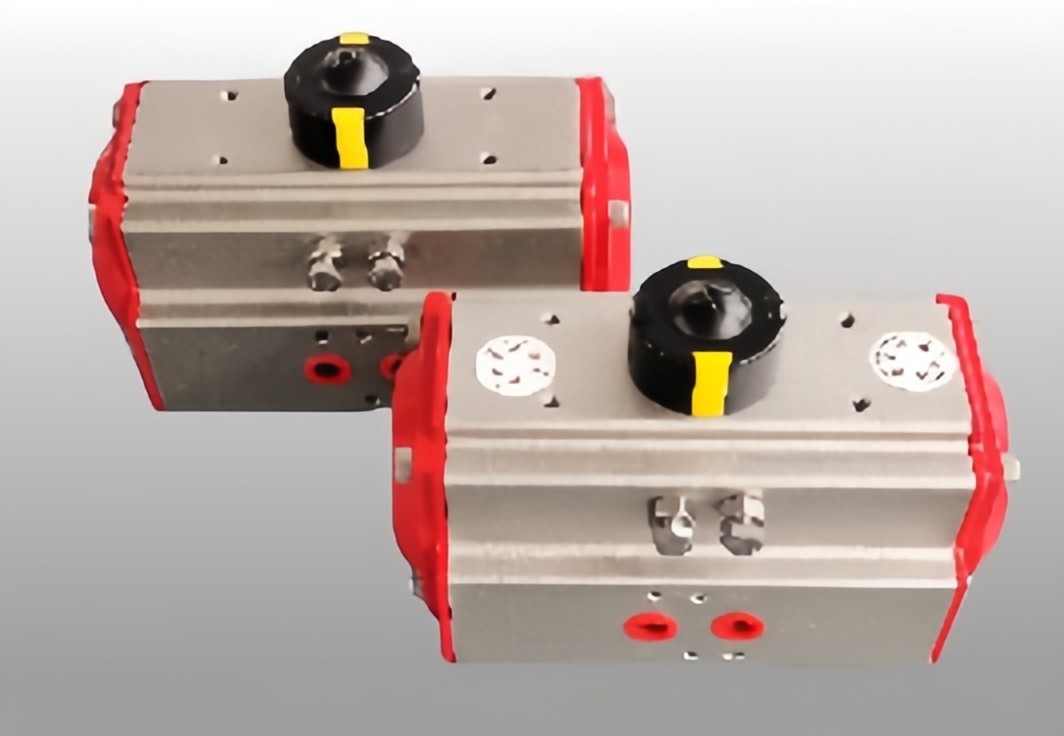

Hard Anodizing Single Action Pneumatic Actuator
90° Single Action Pneumatic Actuator for Valves
This simple effect pneumatic valve actuator features a rack and pinion rotary design with hard anodized aluminum alloy construction for durability in various industrial applications.
Key Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree ±5° |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature |
Normal: -20ºC(-4°F) ~ 80ºC (+176°F) High: -15ºC(+5°F) ~ 150ºC (+302°F) Low: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | Ball valve, butterfly valve, and rotary machine |
| Endcap Color | Grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuator Construction
- Indicator: Position indicator with NAMUR for convenient mounting of accessories
- Pinion: High-precision nickel alloy steel, compliant with ISO5211, DIN3337, NAMUR standards
- Actuator Body: Extruded aluminum alloy ASTM6005 with various treatment options
- End Caps: Die-casting aluminum with powder polyester paint in multiple colors
- Pistons: Twin rack design with hard anodized aluminum or galvanized cast steel
- Travel Adjustment: External stop adjustment bolts for precise 5° adjustment
- Springs: Preloaded coating springs for corrosion resistance and long life
- Bearings & Guides: Low friction, long-life compound material
- O-rings: NBR rubber for standard temperatures, viton/silicone for extremes
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8 " | ||
| AT040 | 122 | 60 | 65 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4 " |
| AT052 | 147 | 72 | 72 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4 " |
| AT400 | 950 | 464 | 516 | 30 | 130 ×30 | 60 | 55 | Æ254 | Æ165 | 8-M16 ×25 | M20 ×25 | NAMUR G1/2 " |
Product Applications
The AT series Pneumatic Actuator features dual pistons driven by racks and pinions, available in Dual Acting and Spring Return models. Suitable for various environments including flammable, corrosive, dusty, and extreme temperature conditions.
Ideal for auto-control applications in electric power, petrochemical, metallurgy, petroleum, gas, construction, chemical processing, mining, power generation, and other industrial sectors.
