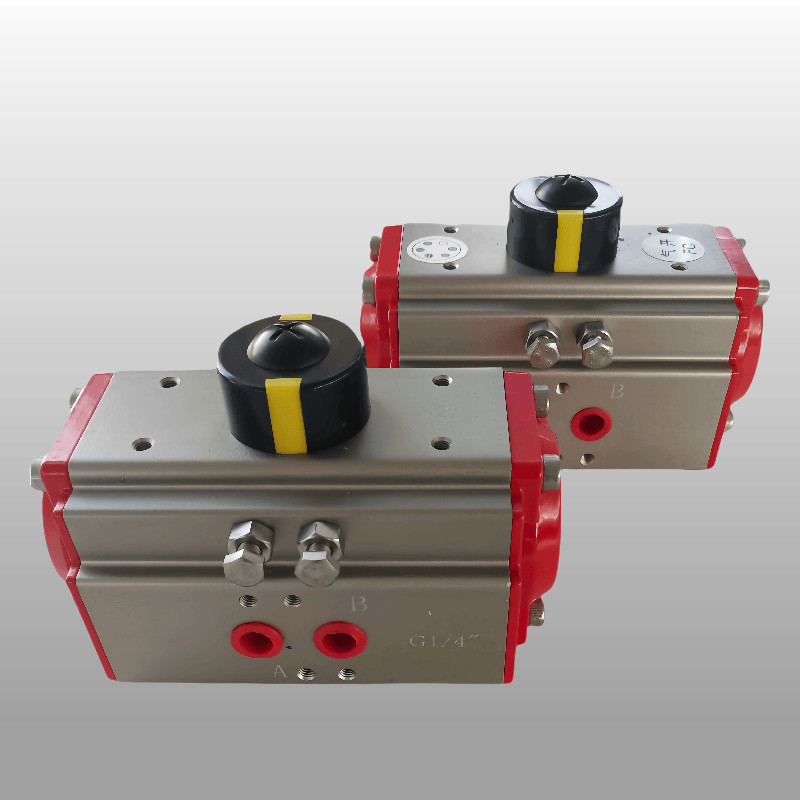

Double Action Pneumatic Actuator
>
Aluminum Alloy Dual Action Actuator ISO5211 DIN3337 Pneumatic Actuator DA Driver
|
Aluminum Alloy Dual Action Actuator ISO5211 DIN3337 Pneumatic Actuator DA Driver
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Name:
Dual Action Actuator
Type:
Double Action Single Action
Material:
Aluminum Alloy
Structure:
Rack & Pinion
Application:
Automatic Control Valve
Power:
Pneumatic
Temperature:
Normal Temperature,Low Temperature,High Temperature
Color:
Blue,gray,according To Customer's Requirements,customized
Size:
32 To 400
Highlight:
Aluminum Alloy Dual Action Actuator
,Dual Action Actuator ISO5211
,DIN3337 Pneumatic Actuator
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
Aluminum Alloy Dual Action Actuator ISO5211 DIN3337 Pneumatic Actuator DA Driver
Wuxi RAT Series Pneumatic Actuator Double Action DA Driver
Pneumatic Actuator Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | hard anodizing |
| Working Temperature |
Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuators Features
- Full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications
- Extruded high-intensity aluminum body with hard anodized coating for durability
- Low friction coefficient and swift performance
- Compact, modern construction with multiple specifications for economic selection
- High-quality bearings for low friction, high cycle life, and quiet operation
- External stroke adjustment bolts for precise ±5° adjustment
- Available in double acting and single acting (Spring-Return) models
- Multi-function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe mounting and tear down
- Die-cast aluminum pistons and end caps for strength and light weight
- Various O-ring materials available for high and low temperature applications
- Direct solenoid valve mounting without connecting plank
Product Applications
The AT series Pneumatic Actuator features dual pistons driven by racks and pinions, available in Dual Acting and Spring Return models. Suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions, both indoor and outdoor.
Ideal for auto-control applications in electric power, petrochemical, metallurgy, petroleum, gas, construction, drainage, chemical industry, oil refining, mining, power plants, architecture, medicine, food, gas, and scientific research.
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8" |
