Product Details
Name:
90 Degree Pneumatic Actuator
Material:
Aluminum Alloy
Structure:
Rack & Pinion
Application:
Automatic Control Valve
Power:
Pneumatic
Temperature:
Normal Temperature,Low Temperature,High Temperature
Media:
Hydraulic Oil Or Water
Color:
Red.blue,gray,according To Customer's Requirements,customized
Size:
32mm To 400mm
Highlight:
Double Action 90 Degree Pneumatic Actuator
,90 Degree Pneumatic Actuator Customized
,Double Action Quarter Turn Actuator
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description

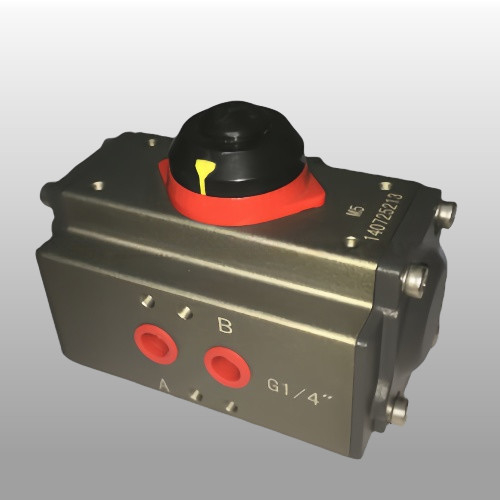

Double Action 90 Degree Pneumatic Actuator Customized Quarter Turn Actuator AT040
The Double Action 90° Pneumatic Actuator is a high-performance quarter-turn actuator designed for precise valve control in industrial applications. This AT040 model features a durable aluminum alloy construction with rack and pinion mechanism for reliable operation.
Product Specifications
| Attribute | Value |
|---|---|
| Type | Double action spring return |
| Material | Aluminum Alloy |
| Structure | Rack & Pinion |
| Application | Automatic control valve |
| Power | Pneumatic |
| Temperature | Normal Temperature, Low Temperature, High Temperature |
| Media | Hydraulic oil or water |
| Color | Red, blue, gray, or customized per customer requirements |
| Size | 32mm to 400mm |
Key Features
- Material: Extruded Aluminum alloy
- Rotary Angle: 0~90 degree ±5°
- Structure: Rack and pinion rotary actuator
- Working Pressure: 2~8bar
- Surface Treatment: Hard anodizing
- Working Temperature Ranges:
- Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F)
- High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F)
- Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F)
- Connection: NAMUR, ISO5211 and DIN3337
- Application: ball valve, butterfly valve, and rotary machine
- Endcap Color options: grey, black, sky blue, dark blue, red, orange
AT Series Pneumatic Actuator Construction
- Indicator: Position indicator with NAMUR for easy mounting of accessories
- Pinion: High-precision nickel alloy steel, compliant with ISO5211, DIN3337, NAMUR standards
- Actuator Body: Extruded aluminum alloy ASTM6005 with various surface treatment options
- End Caps: Die-casting aluminum with powder polyester paint or other treatments
- Pistons: Twin rack pistons with symmetric mounting and reversible rotation
- Travel Adjustment: External stop adjustment bolts for precise 5° adjustment
- Springs: Preloaded coating springs for corrosion resistance and customizable torque
- Bearings & Guides: Low-friction, long-life compound material
- O-rings: NBR rubber for standard temperatures, viton/silicone for extreme conditions
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8" | ||
| AT040 | 122 | 60 | 65 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4" |
