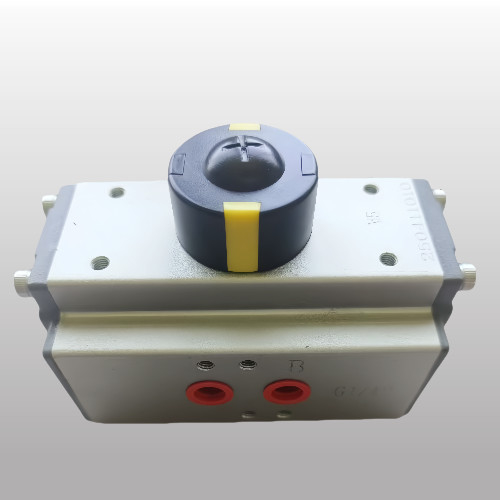

Customized Small Pneumatic Actuators Double Action Mini Valve Actuators AT040
|
Customized Small Pneumatic Actuators Double Action Mini Valve Actuators AT040
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Name:
Small Pneumatic Actuators
Material:
Aluminum Alloy
Structure:
Rack & Pinion
Application:
Automatic Control Valve
Power:
Pneumatic
Temperature:
Normal Temperature,Low Temperature,High Temperature
Color:
Blue,gray,according To Customer's Requirements,customized
Size:
32mm To 400mm
Highlight:
Customized Small Pneumatic Actuators
,Double Action Mini Valve Actuators
,Double Action Small Pneumatic Actuators
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
Customized Small Pneumatic Actuators Double Action Mini Valve Actuators AT040
Product Description
AT040 Small Size Pneumatic Actuator Double Action Mini Valve Actuators
Main Features
- Pneumatic rotary actuator designed for ball valves and butterfly valves
- Cost-effective solution with compact design and long working life
- Available in single acting (spring return) or double acting configurations
- Standard colors: orange, blue, black, dark gray (OEM colors available)
- Working pressure range: 0.3~0.8MPa
- Bottom connection: ISO 5211 standard
- Solenoid valve standard: Namur
- Compatible accessories: limit switch box, solenoid valve, positioner
Pneumatic Actuator Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | hard anodizing |
| Working Temperature | Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuators Features
Through research and development, AT series pneumatic actuators incorporate the latest technology, materials, and innovative design. Key features include:
- Full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR standards
- Extruded high-intensity aluminum body with honed internal surface and hard anode oxygenation coating
- Compact construction with low friction coefficient for swift performance
- High-quality bearings on all acting surfaces for quiet operation and long cycle life
- External stroke adjustment bolts for precise ±5° adjustment
- Available in double acting and single acting (Spring-Return) configurations
- Multi-function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe installation and maintenance
- Die-casting aluminum pistons and end caps for strength and light weight
- Various O-ring materials available for different temperature requirements
- Direct solenoid valve mounting without connecting plank
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H ×I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8 " | ||
| AT040 | 122 | 60 | 65 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4 " |
Product Applications
AT series Pneumatic Actuators feature dual pistons driven by racks and pinions, available in Dual Acting and Spring Return models. Suitable for various environments including:
- Flammable, corrosive, dusty conditions
- Strong magnetic field and radiation environments
- Vibration and corrosive conditions
- Indoor and outdoor installations
Ideal for automation control in:
- Electric power, petrochemical, and metallurgy industries
- Oil and gas, town water systems, and construction
- Drainage, chemical processing, and oil refining
- Mining, power generation, and architecture
- Medical, food processing, and scientific research
