Double Action Pneumatic Actuator
>

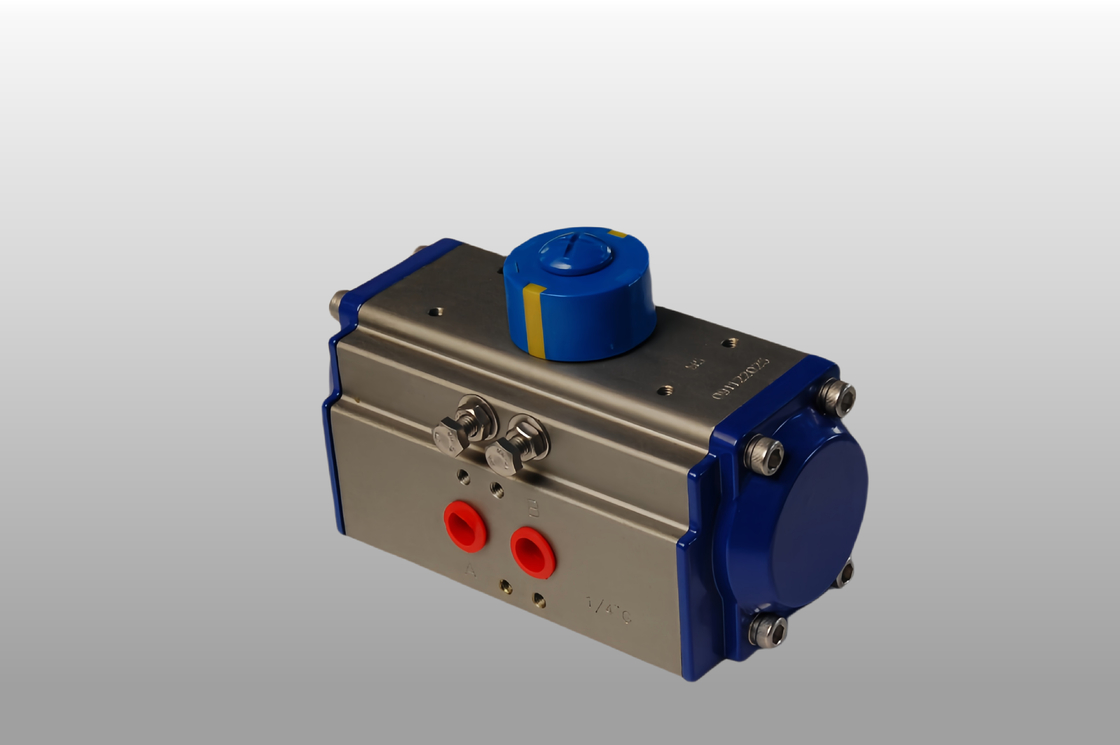

ISO 5211 Rack And Pinion Actuator 63mm Pneumatic Valve Cylinder
|
ISO 5211 Rack And Pinion Actuator 63mm Pneumatic Valve Cylinder
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Name:
Rack And Pinion Actuator
Material:
Aluminum Alloy
Structure:
Rack & Pinion
Application:
Automatic Control Valve
Power:
Pneumatic
Temperature:
Normal Temperature,Low Temperature,High Temperature
Media:
Hydraulic Oil Or Water
Color:
Black.blue,gray,according To Customer's Requirements,customized
Size:
32mm To 400mm
Highlight:
ISO 5211 Rack And Pinion Actuator
,63mm Double Acting Rack And Pinion Actuator
,Pneumatic Valve Cylinder ISO 5211
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
ISO 5211 Rack And Pinion Actuator 63mm Pneumatic Valve Cylinder
AT063 Rack And Pinion Pneumatic Actuator 63mm Pneumatic Valve Cylinder
Main Features
- Pneumatic rotary actuator designed for ball valves and butterfly valves
- Cost-effective solution with compact design and long working life
- Available in single acting (spring return) or double acting configurations
- Standard colors: orange, blue, black, dark gray (OEM colors available)
- Working pressure range: 0.3~0.8MPa
- Bottom connection: ISO 5211 standard
- Solenoid valve standard: Namur
- Compatible accessories: limit switch box, solenoid valve, positioner
Technical Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature |
Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | Ball valve, butterfly valve, and rotary machine |
| Cup Color | Grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuators Features
- Conforms to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications
- Extruded high-intensity aluminum body with hard anodized coating for durability
- Compact design with low friction coefficient for swift performance
- High-quality bearings for smooth operation, long life, and quiet performance
- External stroke adjustment bolts for precise ±5° adjustment
- Available in double acting and single acting (Spring-Return) configurations
- Multi-function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe installation and maintenance
- Die-casting aluminum pistons and end caps for strength and light weight
- Various O-ring materials available for different temperature requirements
- Direct solenoid valve mounting without connecting plank
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 × 25 | 12 | 9 | Æ36 | M5 × 7.5 | G1/8" |
Product Applications
AT series Pneumatic Actuators feature dual pistons driven by racks and pinions, available in Dual Acting and Spring Return models. Suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions, both indoor and outdoor.
Ideal for automatic control in industries such as:
- Electric power
- Petrochemical
- Metallurgy
- Oil and gas
- Construction and drainage
- Chemical processing
- Mining
- Power generation
- Pharmaceutical and food processing
- Scientific research
