Double Action Pneumatic Actuator
>

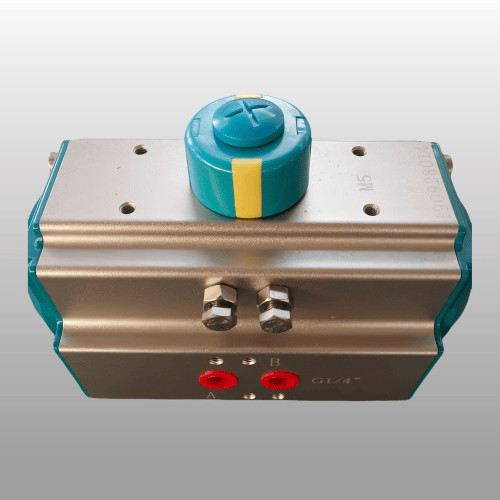

OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators
|
OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Name:
Double Action Pneumatic Actuator
Material:
Aluminum Alloy
Structure:
Rack & Pinion
Application:
Automatic Control Valve
Power:
Pneumatic
Temperature:
Normal Temperature,Low Temperature,High Temperature
Media:
Hydraulic Oil Or Water
Color:
RAL5021.blue,gray,according To Customer's Requirements,customized
Size:
32mm To 400mm
Highlight:
OEM Double Action Pneumatic Actuator
,Aluminum Alloy Rack And Pinion Actuators
,Rack And Pinion Actuators OEM
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators
AT series Pneumatic Actuators are designed for dual pistons driven by racks and pinions, available in Dual Acting and Spring Return models. Suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions, both indoor and outdoor.
Product Specifications
| Attribute | Value |
|---|---|
| Type | Double Action Single Action |
| Material | Aluminum Alloy |
| Structure | Rack & Pinion |
| Application | Automatic control valve |
| Power | Pneumatic |
| Temperature | Normal Temperature, Low Temperature, High Temperature |
| Media | Hydraulic oil or water |
| Color | RAL5021.blue, gray, according to customer's requirements, customized |
| Size | 32mm to 400mm |
Model AT052 Rack And Pinion Pneumatic Actuator
High-performance double effect valve actuators designed for precision control in industrial applications.
Key Specifications
| Material | Extruded Aluminum alloy |
|---|---|
| Rotary Angle | 0~90 degree |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature | Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | Ball valve, butterfly valve, and rotary machine |
| Color Options | Grey, black, sky blue, dark blue, red, orange |
Product Features
- Full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications
- Extruded high-intensity aluminum body with hard anodized coating for durability
- Low friction coefficient and swift performance
- Compact, modern construction with multiple specifications
- High-quality bearings for low friction, high cycle life, and quiet operation
- External stroke adjustment bolts for precise ±5° adjustment
- Available in double acting and single acting (spring return) models
- Multi-function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe mounting and tear down
- Die-cast aluminum pistons and end caps for strength and light weight
- Various O-ring materials available for different temperature requirements
- Direct solenoid valve mounting without connecting plank
Technical Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8 " |
