Double Action Pneumatic Actuator
>
Silver Double Action Pneumatic Actuator OEM Pneumatic Valve Actuators AT Series
|
Silver Double Action Pneumatic Actuator OEM Pneumatic Valve Actuators AT Series
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Product Name:
Double Action Pneumatic Actuator
Installation Valve:
Butterfly Valves,ball Valves
Body:
Aluminum Alloy
Body Color:
Silver
Sizes Range:
AT32-AT400
Normal Temp:
-20℃-80℃
Highlight:
Silver Double Action Pneumatic Actuator
,Double Action Pneumatic Actuator OEM
,OEM Pneumatic Valve Actuators
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description

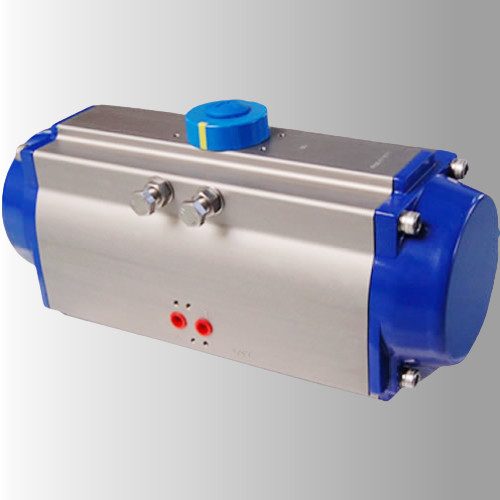

AT Series Double Action Pneumatic Valve Actuators
High-performance pneumatic actuators designed for precision control in industrial applications. Manufactured with extruded aluminum alloy for durability and reliability.
Technical Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature |
Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | Ball valve, butterfly valve, and rotary machine |
| Color Options | Grey, black, sky blue, dark blue, red, orange (OEM colors available) |
Product Features
- Conforms to ISO5211, DIN3337, VDINDE-3854, and NAMUR standards
- Extruded high-intensity aluminum body with hard anodized coating
- Compact construction with multi-specification options
- High-quality bearings for low friction and silent operation
- External stroke adjustment bolts (±5° adjustment)
- Available in double acting and single acting (Spring-Return) models
- Multi-function indicator with NAMUR for accessory mounting
- Pre-compressed load spring for safe installation
- Die-casting aluminum pistons and end caps for lightweight durability
- Various O-ring materials available for different temperature ranges
- Direct solenoid valve mounting without connecting plank
Dimensional Specifications
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 × 25 | 12 | 9 | Æ36 | M5 × 7.5 | G1/8" | ||
| AT400 | 950 | 464 | 516 | 30 | 130 × 30 | 60 | 55 | Æ254 | Æ165 | 8-M16 × 25 | M20 × 25 | NAMUR G1/2" |
Applications
AT series Pneumatic Actuators are ideal for various industrial environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions. Suitable for both indoor and outdoor applications in:
- Electric power plants
- Petrochemical facilities
- Metallurgy operations
- Oil and gas processing
- Water treatment plants
- Chemical processing
- Mining operations
- Food and pharmaceutical production
- Scientific research facilities
