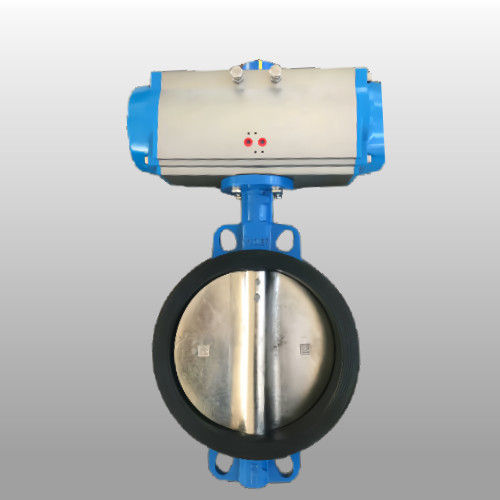

Double Acting Pneumatic Butterfly Valve EPDM Seat Wafer Butterfly Valves Ductile Iron Body
|
Double Acting Pneumatic Butterfly Valve EPDM Seat Wafer Butterfly Valves Ductile Iron Body
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Type:
Pneumatic Butterfly Valve
Valve Media:
Water。Oil。Gas
Body Material:
DI
Port Size:
DN25~DN1000
Valve Sealing:
EPDM
Valve Pressure:
PN10-16
Highlight:
Double Acting Pneumatic Butterfly Valve
,EPDM Seat Wafer Butterfly Valves
,Ductile Iron Body Wafer Butterfly Valves
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
carton box
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
Double Acting Pneumatic Butterfly Valve EPDM Seat Wafer Butterfly Valves Ductile Iron Body
Product Description
Double Acting Pneumatic Butterfly Valve Ductile Iron Body EPDM Seat Wafer Butterfly Valve
Pneumatic Actuator Specifications
| Material | Extruded Aluminum alloy |
|---|---|
| Rotary Angle | 0~90 degree |
| Structure | rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | hard anodizing |
| Working Temperature |
Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuators Features
- Full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications
- Extruded high-intensity aluminum body with hard anodized coating for durability
- Low friction coefficient and swift performance
- Compact construction with multi-specification options
- High-quality bearings for low friction, long cycle life, and silent operation
- External stroke adjustment bolts for precise ±5° adjustment
- Available in double acting and single acting (Spring-Return) models
- Multi-function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe installation and removal
- Die-cast aluminum pistons and end caps for strength and light weight
- Various O-ring materials available for different temperature ranges
- Easy solenoid valve mounting without connecting plank
Main Features
- Widely used in ball valves and butterfly valves
- Cost-effective with compact design and long working life
- Available in single acting (spring return) or double acting models
- Color options: orange, blue, black, dark gray (OEM colors available)
- Working pressure: 0.3~0.8MPa
- Bottom connection: ISO 5211
- Solenoid valve standard: Namur
- Compatible accessories: limit switch box, solenoid valve, positioner
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8" |
Product Applications
AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions, available in Dual Acting and Spring Return models. Suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions, both indoor and outdoor.
Applications include auto-control in electric power, petrochemical, metallurgy, petroleum, gas, town construction, drainage, chemical industry, oil refining, mining, power plants, architecture, medicine, food, gas, and scientific research.
