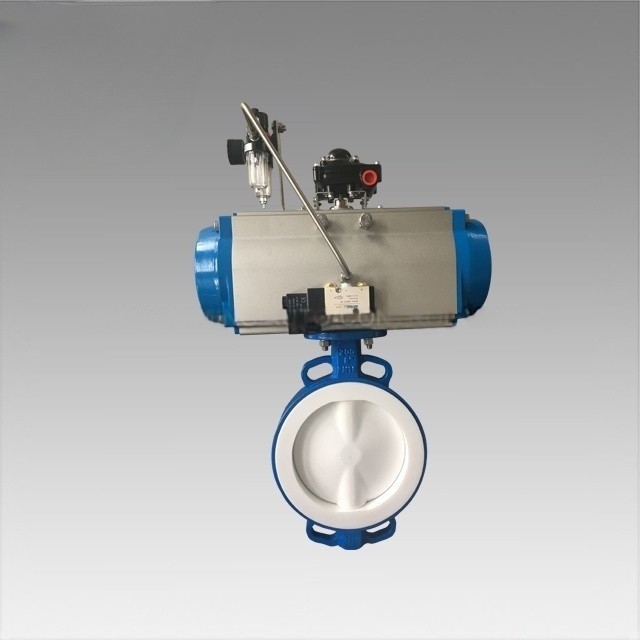

PTFE Sealing Pneumatic Butterfly Valve Wafer Pneumatic Actuated Butterfly Valve DN25 - DN1000
|
PTFE Sealing Pneumatic Butterfly Valve Wafer Pneumatic Actuated Butterfly Valve DN25 - DN1000
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Type:
Pneumatic Butterfly Valve
Valve Media:
Water。Oil。Gas
Body Material:
DI
Port Size:
DN25~DN1000
Valve Sealing:
PTFE
Valve Pressure:
PN10-16
Highlight:
PTFE Sealing Pneumatic Butterfly Valve
,Wafer Pneumatic Actuated Butterfly Valve
,Pneumatic Actuated Butterfly Valve DN25
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
carton box
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
PTFE Sealing Pneumatic Butterfly Valve Wafer Pneumatic Actuated Butterfly Valve DN25 - DN1000
Pneumatic Butterfly Valve PTFE Sealing Wafer Pneumatic Actuated Butterfly Valve
Main Features
- Pneumatic rotary actuator designed for ball valves and butterfly valves
- Cost-effective solution with compact design and long working life
- Available in single acting (spring return) or double acting configurations
- Standard colors: orange, blue, black, dark gray (OEM colors available)
- Working pressure: 0.3~0.8MPa
- Bottom connection: ISO 5211 standard
- Solenoid valve standard: Namur
- Compatible accessories: limit switch box, solenoid valve, positioner
Pneumatic Actuator Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature |
Normal: -20ºC(-4°F) ~ 80ºC (+176°F) High: -15ºC(+5°F) ~ 150ºC (+302°F) Low: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | Ball valve, butterfly valve, and rotary machine |
| Cup Color | Grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuators Features
Through research and development, AT series pneumatic actuators incorporate the latest technology, materials, and innovative design. Key features include:
- Full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications
- Extruded high-intensity aluminum body with honed internal surface and hard anodized coating
- Compact, modern construction with multiple specifications for economic selection
- High-quality bearings on all acting surfaces for low friction, high cycle life, and quiet operation
- External stroke adjustment bolts for precise ±5° adjustment in both directions
- Available in double acting and single acting (Spring-Return) configurations
- Multi-function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe mounting and disassembly
- Die-casting aluminum pistons and end caps for high strength and light weight
- Various O-ring materials available for different temperature requirements
- Direct solenoid valve mounting without connecting plank
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8" |
Product Applications
AT series Pneumatic Actuators feature dual pistons driven by racks and pinions, available in Dual Acting and Spring Return models. Suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions.
Ideal for auto-control applications in:
- Electric power
- Petrochemical
- Metallurgy
- Oil and gas
- Construction and drainage
- Chemical processing
- Mining
- Power generation
- Food and pharmaceutical
- Scientific research
