EPDM Sealing Wafer Style Butterfly Valves OEM Pneumatic Operated Butterfly Valves
|
EPDM Sealing Wafer Style Butterfly Valves OEM Pneumatic Operated Butterfly Valves
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Type:
Wafer Style Butterfly Valves
Valve Media:
Water/Oil/Gas
Body Material:
DI
Port Size:
DN25~DN1000
Valve Sealing:
EPDM
Valve Pressure:
PN10-16
Highlight:
EPDM Sealing Wafer Style Butterfly Valves
,Wafer Style Butterfly Valves OEM
,OEM Pneumatic Operated Butterfly Valves
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
carton box
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description

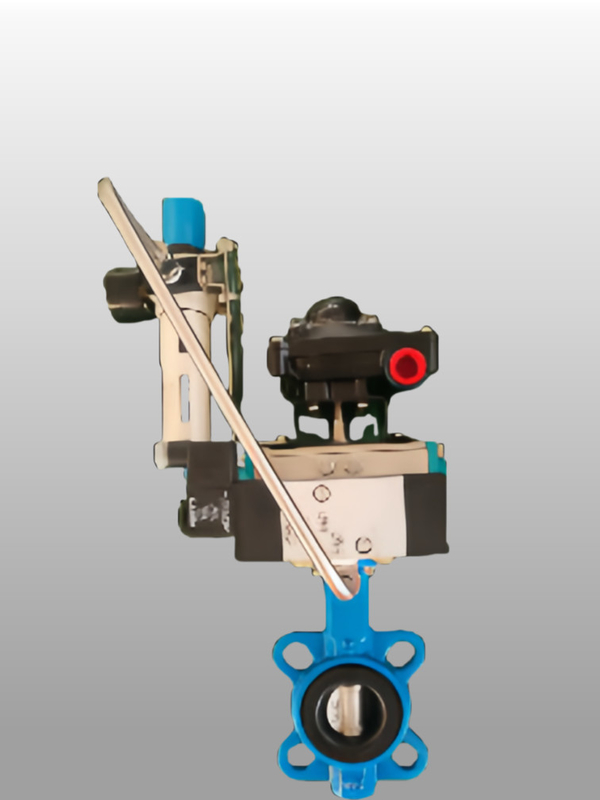

EPDM Sealing Wafer Style Butterfly Valves with Pneumatic Actuator
Pneumatic Actuator Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature |
Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | Ball valve, butterfly valve, and rotary machine |
| Cup Color | Grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuator Features
- Full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications
- Extruded high-intensity aluminum body with hard anodized coating for durability
- Low friction coefficient for swift performance and long service life
- Compact construction with multiple specifications for economic selection
- High-quality bearings on all acting surfaces for quiet, low-friction operation
- External stroke adjustment bolts for precise ±5° adjustment
- Available in double acting and single acting (Spring-Return) models
- Multi-function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe mounting and disassembly
- Die-cast aluminum pistons and end caps for strength and light weight
- Various O-ring materials available for different temperature requirements
- Direct solenoid valve mounting without connecting plank
Main Features
- Ideal for ball valves and butterfly valves
- Cost-effective with compact design and long working life
- Available in single acting (spring return) or double acting models
- Standard colors: orange, blue, black, dark gray (OEM colors available)
- Working pressure: 0.3~0.8MPa
- Bottom connection: ISO 5211
- Solenoid valve standard: Namur
- Compatible accessories: limit switch box, solenoid valve, positioner
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 × 25 | 12 | 9 | Æ36 | M5 × 7.5 | G1/8" |
Product Applications
AT series Pneumatic Actuators are designed for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions. Suitable for both indoor and outdoor use in:
- Electric power plants
- Petrochemical facilities
- Metallurgy operations
- Oil and gas industry
- Municipal water systems
- Construction projects
- Chemical processing
- Mining operations
- Food and pharmaceutical production
- Scientific research facilities
