Rack And Pinion Pneumatic Actuator
>

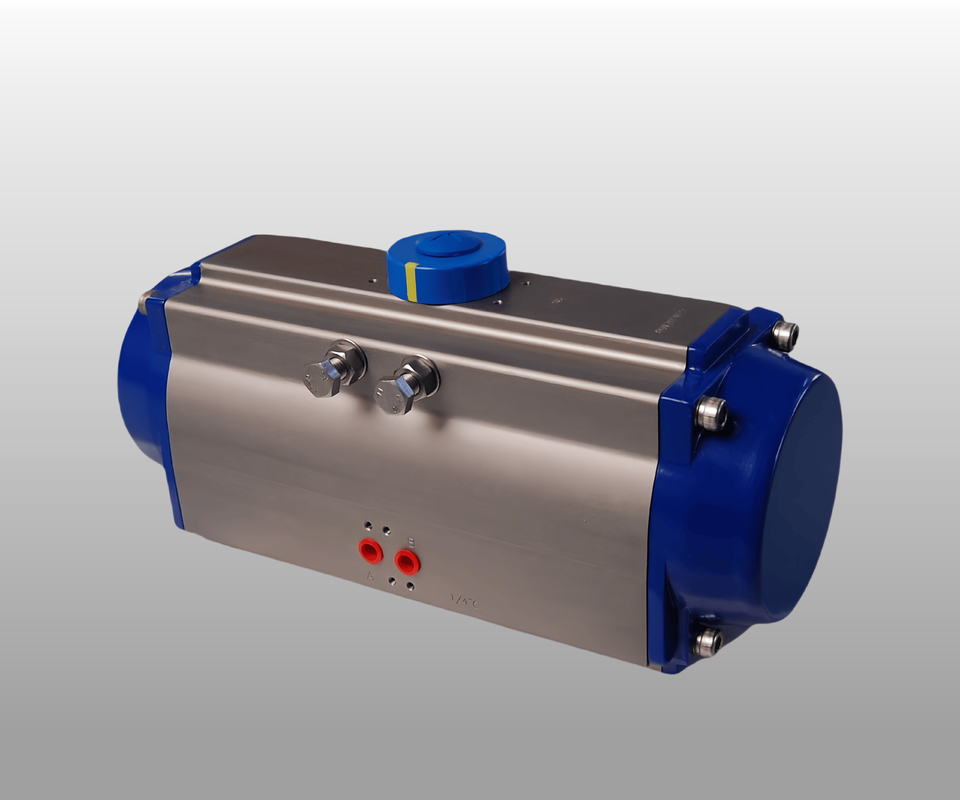

Pneumatic Rack And Pinion Rotary Actuator OEM Actuator For Valve
|
Pneumatic Rack And Pinion Rotary Actuator OEM Actuator For Valve
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Name:
Rack And Pinion Rotary Actuator
Type:
Double Action Spring Return
Material:
Aluminum Alloy
Application:
Automatic Control Valve
Power:
Pneumatic
Temperature:
Normal Temperature,Low Temperature,High Temperature
Media:
Hydraulic Oil Or Water
Color:
Blue,gray,according To Customer's Requirements,customized
Size:
32mm To 400mm
Highlight:
Pneumatic Rack And Pinion Rotary Actuator
,Rack And Pinion Rotary Actuator OEM
,OEM Actuator For Valve
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
AT Series Rack And Pinion Pneumatic Actuator AT160 Actuator For Valve
Main Features
- Pneumatic rotary actuator designed for ball valves and butterfly valves
- Cost-effective solution with compact design and long working life
- Available in single acting (spring return) or double acting configurations
- Standard colors: orange, blue, black, dark gray (OEM colors available)
- Working pressure range: 0.3~0.8MPa
- Bottom connection: ISO 5211 standard
- Solenoid valve standard: Namur
- Compatible accessories: limit switch box, solenoid valve, positioner
Technical Specifications
Material: Extruded Aluminum alloy
Rotary Angle: 0~90 degree
Structure: Rack and pinion rotary actuator
Working Pressure: 2~8bar
Surface Treatment: Hard anodizing
Working Temperature:
- Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F)
- High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F)
- Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F)
Connection: NAMUR, ISO5211 and DIN3337
Application: Ball valve, butterfly valve, and rotary machine
Cup Color: Grey, black, sky blue, dark blue, red, orange
Product Features and Benefits
- Conforms to industry standards: ISO5211, DIN3337, VDINDE-3854, NAMUR
- Extruded high-intensity aluminum body with honed internal surface and hard anode oxygenation coating
- Low coefficient of friction for swift performance and long service life
- Compact, modernized construction with multiple specifications for economic selection
- High-quality bearings on all acting surfaces for low friction, high cycle life, and silent operation
- External stroke adjustment bolts for precise ±5° adjustment in both directions
- Available in double acting and single acting (Spring-Return) configurations
- Multi-function indicator with NAMUR for convenient accessory mounting
- Pre-compressed load spring for safe mounting and tear down procedures
- Die-casting aluminum pistons and end caps for high intensity and light weight
- Various O-ring materials available for different temperature requirements
- Solenoid valves mount easily without connecting planks
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8 " | ||
| AT040 | 122 | 60 | 65 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4 " |
| AT052 | 147 | 72 | 72 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4 " |
| AT063 | 172 | 88 | 83 | 20 | 80 ×30 | 18 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4 " |
| AT075 | 184 | 100 | 95 | 20 | 80 ×30 | 20 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4 " |
| AT083 | 204 | 109 | 103 | 20 | 80 ×30 | 21 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4 " |
| AT092 | 262 | 117 | 109 | 20 | 80 ×30 | 22 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4 " |
| AT105 | 268 | 133 | 121 | 20 | 80 ×30 | 26 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4 " |
| AT125 | 301 | 155 | 143 | 20 | 80 ×30 | 27 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4 " |
| AT140 | 394 | 173 | 152 | 20 | 80 ×30 | 32 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4 " |
| AT160 | 458 | 198 | 174 | 20 | 80 ×30 | 34 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4 " |
| AT190 | 528 | 232 | 206 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4 " | ||
| AT210 | 532 | 257 | 226 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4 " | ||
| AT240 | 660 | 291 | 260 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/4 " | ||
| AT270 | 740 | 330 | 294 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/2 " | ||
| AT300 | 798 | 354 | 336 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2 " | ||
| AT350 | 880 | 408 | 385 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2 " | ||
| AT400 | 950 | 464 | 516 | 30 | 130 ×30 | 60 | 55 | Æ254 | Æ165 | 8-M16 ×25 | M20 ×25 | NAMUR G1/2 " |
Product Applications
The AT series Pneumatic Actuator features dual pistons driven by racks and pinions, available in Dual Acting and Spring Return models. Suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions, both indoor and outdoor.
Ideal for auto-control applications in:
- Electric power plants
- Petrochemical facilities
- Metallurgy operations
- Oil and gas processing
- Municipal water and drainage systems
- Chemical processing plants
- Mining operations
- Construction projects
- Pharmaceutical and food processing
- Scientific research facilities
Product Images
Contact Information
Mobile: +86 13921532524
Wechat:+86 13921532524
Email: snow0909@hotmail.com
Wechat:+86 13921532524
Email: snow0909@hotmail.com
