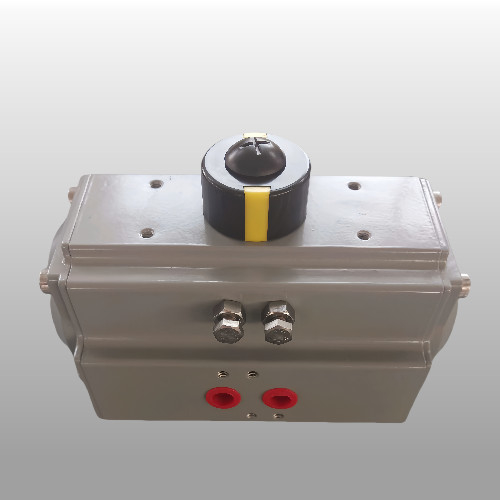

OEM Rack And Pinion Pneumatic Actuator 90 Degree Pneumatic Rotating Actuator
|
OEM Rack And Pinion Pneumatic Actuator 90 Degree Pneumatic Rotating Actuator
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Name:
Rack And Pinion Pneumatic Actuator
Type:
Double Action Spring Return
Material:
Aluminum Alloy
Structure:
Rack & Pinion
Application:
Automatic Control Valve
Temperature:
Normal Temperature,Low Temperature,High Temperature
Media:
Hydraulic Oil Or Water
Color:
Red.blue,gray,according To Customer's Requirements,customized
Size:
32mm To 400mm
Highlight:
OEM Rack And Pinion Pneumatic Actuator
,90 Degree Pneumatic Rotating Actuator
,Pneumatic Rotating Actuator OEM
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
OEM Rack And Pinion Pneumatic Actuator 90 Degree Pneumatic Rotating Actuator
90 Degree Rotation Pneumatic Valve Pneumatic Actuator Mounted On Valves
Pneumatic Actuator Specifications
| Material | Extruded Aluminum alloy |
|---|---|
| Rotary Angle | 0~90 degree ±5° |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature |
Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Endcap Color | grey, black, sky blue, dark blue, red, orange |
Product Application
AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. There are two models: Dual Acting model and Spring Return model, suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions.
Applications include auto-control in electric power, petrochemical, metallurgy, petroleum, gas, construction, drainage, chemical industry, oil refining, mining, power plants, architecture, medicine, food, gas, and scientific research.
AT Series Pneumatic Actuator Construction
- Indicator: Position indicator with NAMUR for convenient mounting of accessories like limit switch box and positioner.
- Pinion: High-precision nickel alloy steel, conforming to ISO5211, DIN3337, and NAMUR standards. Custom dimensions available with stainless steel option.
- Actuator body: Extruded aluminum alloy ASTM6005 with hard anodized, powder polyester painted, PTFE or nickel plated treatments.
- End caps: Die-casting aluminum with powder polyester paint in various colors, PTFE or nickel plated.
- Pistons: Twin rack pistons made from die-casting aluminum (hard anodized) or cast steel (galvanized). Symmetric mounting for long life and fast operation.
- Travel adjustment: Two independent external travel stop adjustment bolts for precise 5˚ adjustment.
- High performance springs: Preloaded coating springs made from high-quality corrosion-resistant material for longer cycle life.
- Bearings & guides: Low friction, long-life compound material to avoid metal-to-metal contact.
- O-rings: NBR rubber for standard temperatures, viton or silicone for high/low temperature ranges.
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 × 25 | 12 | 9 | Æ36 | M5 × 7.5 | G1/8" |
