Rack And Pinion Pneumatic Actuator
>

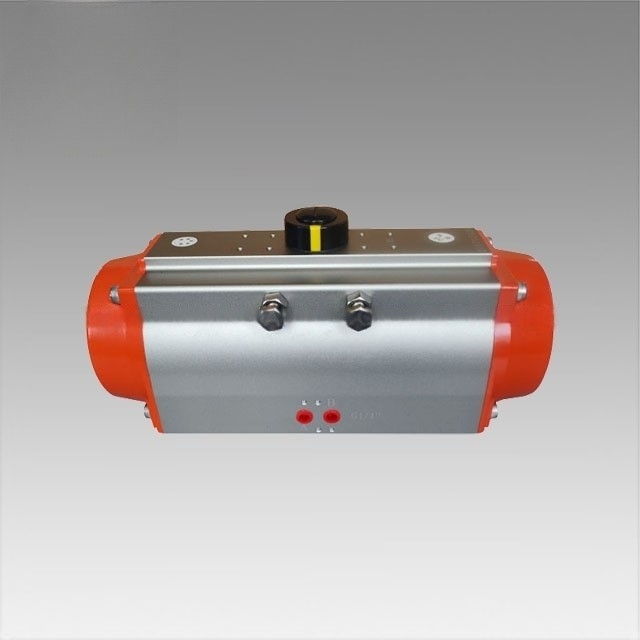

Customized Rack And Pinion Pneumatic Actuator 90 Degree Piston Pneumatic Actuators
|
Customized Rack And Pinion Pneumatic Actuator 90 Degree Piston Pneumatic Actuators
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Name:
Rack And Pinion Pneumatic Actuator
Type:
Double Action Single Action
Material:
Aluminum Alloy
Structure:
Rack & Pinion
Application:
Automatic Control Valve
Power:
Pneumatic
Temperature:
Normal Temperature,Low Temperature,High Temperature
Color:
Orange.blue,gray,according To Customer's Requirements,customized
Size:
32mm To 400mm
Highlight:
Customized Rack And Pinion Pneumatic Actuator
,90 Degree Piston Pneumatic Actuators
,Piston Pneumatic Actuators Customized
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
Customized Rack And Pinion Pneumatic Actuator 90 Degree Piston Pneumatic Actuators
AT083 Rack Pistons Pneumatic Rotary Actuators 90 Degree Actuator For Valves
Pneumatic rotary actuators are widely used in ball valves and butterfly valves, offering reliable performance in various industrial applications.
Main Features
- Low cost, compact design with long working life
- Available in single acting (spring return) or double acting configurations
- Custom color options: orange, blue, black, dark gray (OEM colors available)
- Working pressure range: 0.3~0.8MPa
- Bottom connection: ISO 5211 standard
- Solenoid valve standard: Namur
- Compatible accessories: limit switch box, solenoid valve, positioner
Pneumatic Actuator Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature |
Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | Ball valve, butterfly valve, and rotary machine |
| Cup Color | Grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuators Features
- Conforms to ISO5211, DIN3337, VDINDE-3854, and NAMUR standards
- Extruded high-intensity aluminum body with hard anodized coating for durability
- Low friction coefficient for smooth, efficient operation
- Compact, modern construction with multiple specifications
- High-quality bearings for quiet, long-lasting performance
- External stroke adjustment bolts (±5° adjustment in both directions)
- Available in double acting and single acting (Spring-Return) configurations
- Multi-function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe installation and removal
- Die-casting aluminum pistons and end caps for strength and light weight
- Various O-ring materials available for different temperature requirements
- Direct solenoid valve mounting without connecting plank
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 × 25 | 12 | 9 | Æ36 | M5 × 7.5 | G1/8" |
Product Applications
AT series Pneumatic Actuators feature dual pistons driven by racks and pinions, available in Dual Acting and Spring Return models. Suitable for various environments including:
- Flammable, corrosive, or dusty conditions
- Strong magnetic field or radiation environments
- Vibration and corrosive environments (indoor or outdoor)
Ideal for auto-control applications in:
- Electric power, petrochemical, and metallurgy industries
- Oil, gas, and town construction
- Drainage, chemical, and refining operations
- Mining, power plants, and scientific research
- Architecture, medicine, and food processing
