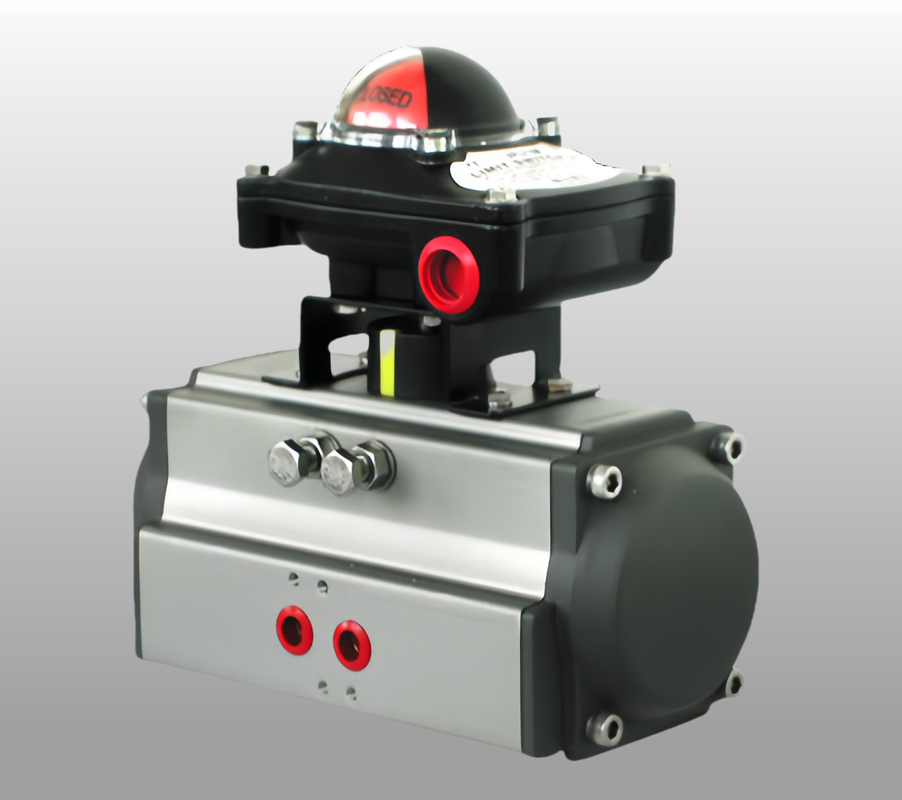

Hard Anodized Aluminum Alloy Pneumatic Valve Actuator With Limit Switch Box
|
Hard Anodized Aluminum Alloy Pneumatic Valve Actuator With Limit Switch Box
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Type:
Double Action Spring Return
Material:
Aluminum Alloy
Structure:
Rack & Pinion
Application:
Automatic Control Valve
Power:
Air
Temperature:
Normal Temperature,Low Temperature,High Temperature
Media:
Hydraulic Oil Or Water
Color:
Blue,gray,according To Customer's Requirements,customized
Size:
32mm To 400mm
Highlight:
Hard Anodized Pneumatic Valve Actuator
,Aluminum Alloy Pneumatic Valve Actuator
,Actuator Limit Switch Box
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
Hard Anodized Aluminum Alloy Pneumatic Valve Actuator With Limit Switch Box
Pneumatic Actuator Specifications
Material: Extruded Aluminum alloy
Rotary Angle: 0~90 degree
Structure: rack and pinion rotary actuator
Working Pressure: 2~8bar
Surface Treatment: hard anodizing
Working Temperature:
Normal: -20ºC(-4°F) ~ 80ºC (+176°F)
High: -15ºC(+5°F) ~ 150ºC (+302°F)
Low: -40ºC(-104°F) ~ 80ºC (+176°F)
High: -15ºC(+5°F) ~ 150ºC (+302°F)
Low: -40ºC(-104°F) ~ 80ºC (+176°F)
Connection: NAMUR, ISO5211 and DIN3337
Application: ball valve, butterfly valve, and rotary machine
Color Options: grey, black, sky blue, dark blue, red, orange
Product Features
- Conforms to ISO5211, DIN3337, VDINDE-3854, and NAMUR standards
- Extruded high-intensity aluminum body with hard anodized coating
- Low friction coefficient for swift performance and long life
- Compact construction with multi-specification options
- High-quality bearings for quiet operation and durability
- External stroke adjustment bolts (±5° adjustment)
- Available in double acting and spring return models
- Multi-function indicator with NAMUR for accessory mounting
- Pre-compressed load spring for safe installation
- Die-cast aluminum pistons and end caps for strength and lightness
- Various O-ring materials available for temperature extremes
Technical Specifications
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air Connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50×25 | 12 | 9 | Æ36 | M5×7.5 | G1/8" | ||
| AT040 | 122 | 60 | 65 | 20 | 80×30 | 14 | 11 | Æ50 | Æ36 | M6×10 | M5×7.5 | NAMUR G1/4" |
| AT052 | 147 | 72 | 72 | 20 | 80×30 | 14 | 11 | Æ50 | Æ36 | M6×10 | M5×7.5 | NAMUR G1/4" |
| AT063 | 172 | 88 | 83 | 20 | 80×30 | 18 | 14 | Æ70 | Æ50 | M8×13 | M6×10 | NAMUR G1/4" |
| AT075 | 184 | 100 | 95 | 20 | 80×30 | 20 | 14 | Æ70 | Æ50 | M8×13 | M6×10 | NAMUR G1/4" |
| AT083 | 204 | 109 | 103 | 20 | 80×30 | 21 | 17 | Æ70 | Æ50 | M8×13 | M6×10 | NAMUR G1/4" |
| AT092 | 262 | 117 | 109 | 20 | 80×30 | 22 | 17 | Æ70 | Æ50 | M8×13 | M6×10 | NAMUR G1/4" |
| AT105 | 268 | 133 | 121 | 20 | 80×30 | 26 | 22 | Æ102 | Æ70 | M10×16 | M8×13 | NAMUR G1/4" |
| AT125 | 301 | 155 | 143 | 20 | 80×30 | 27 | 22 | Æ102 | Æ70 | M10×16 | M8×13 | NAMUR G1/4" |
| AT140 | 394 | 173 | 152 | 20 | 80×30 | 32 | 27 | Æ125 | Æ102 | M12×20 | M10×16 | NAMUR G1/4" |
| AT160 | 458 | 198 | 174 | 20 | 80×30 | 34 | 27 | Æ125 | Æ102 | M12×20 | M10×16 | NAMUR G1/4" |
| AT190 | 528 | 232 | 206 | 30 | 130×30 | 40 | 36 | Æ140 | M16×24 | NAMUR G1/4" | ||
| AT210 | 532 | 257 | 226 | 30 | 130×30 | 40 | 36 | Æ140 | M16×24 | NAMUR G1/4" | ||
| AT240 | 660 | 291 | 260 | 30 | 130×30 | 50 | 46 | Æ165 | M20×25 | NAMUR G1/4" | ||
| AT270 | 740 | 330 | 294 | 30 | 130×30 | 50 | 46 | Æ165 | M20×25 | NAMUR G1/2" | ||
| AT300 | 798 | 354 | 336 | 30 | 130×30 | 60 | 46 | Æ165 | M20×25 | NAMUR G1/2" | ||
| AT350 | 880 | 408 | 385 | 30 | 130×30 | 60 | 46 | Æ165 | M20×25 | NAMUR G1/2" | ||
| AT400 | 950 | 464 | 516 | 30 | 130×30 | 60 | 55 | Æ254 | Æ165 | 8-M16×25 | M20×25 | NAMUR G1/2" |
Product Applications
AT series Pneumatic Actuators are designed for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions. Suitable for both indoor and outdoor use in industries such as:
- Electric power
- Petrochemical
- Metallurgy
- Oil and gas
- Construction and drainage
- Chemical processing
- Mining
- Power generation
- Food and pharmaceutical
- Scientific research
