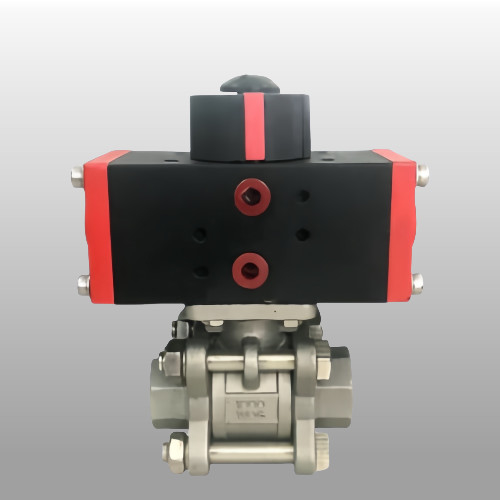

SS304 Pneumatic Actuated Ball Valve Customized BSP Thread Ball Valve
|
SS304 Pneumatic Actuated Ball Valve Customized BSP Thread Ball Valve
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Name:
Pneumatic Actuated Ball Valve
Type:
Double Action Spring Return
Structure:
Rack & Pinion
Application:
Automatic Control Valve
Power:
Pneumatic
Temperature:
Normal Temperature,Low Temperature,High Temperature
Media:
Hydraulic Oil Or Water
Color:
RAL5021.blue,gray,according To Customer's Requirements,customized
Size:
32mm To 400mm
Highlight:
SS304 Pneumatic Actuated Ball Valve
,Pneumatic Actuated Ball Valve Customized
,Customized BSP Thread Ball Valve
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
SS304 Pneumatic Actuated Ball Valve with Customized BSP Thread
Pneumatic Actuator Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature |
Normal: -20ºC(-4°F) ~ 80ºC (+176°F) High: -15ºC(+5°F) ~ 150ºC (+302°F) Low: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | Ball valve, butterfly valve, and rotary machine |
| Cup Color | Grey, black, sky blue, dark blue, red, orange |
Key Features
- Conforms to ISO5211, DIN3337, VDINDE-3854, and NAMUR standards
- Extruded high-intensity aluminum body with hard anodized coating
- Compact construction with multiple specifications for economic selection
- High-quality bearings for low friction, long life, and quiet operation
- External stroke adjustment bolts for precise ±5° adjustment
- Available in double acting or spring return (normally-open/closed) models
- Multi-function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe installation and removal
- Die-casting aluminum pistons and end caps for strength and light weight
- Various O-ring materials available for different temperature requirements
Technical Specifications
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 × 25 | 12 | 9 | Æ36 | M5 × 7.5 | G1/8" |
Applications
AT series Pneumatic Actuators are suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions, both indoor and outdoor.
Ideal for auto-control in industries including:
- Electric power
- Petrochemical
- Metallurgy
- Oil and gas
- Construction and drainage
- Chemical processing
- Mining
- Power generation
- Food processing
- Scientific research
