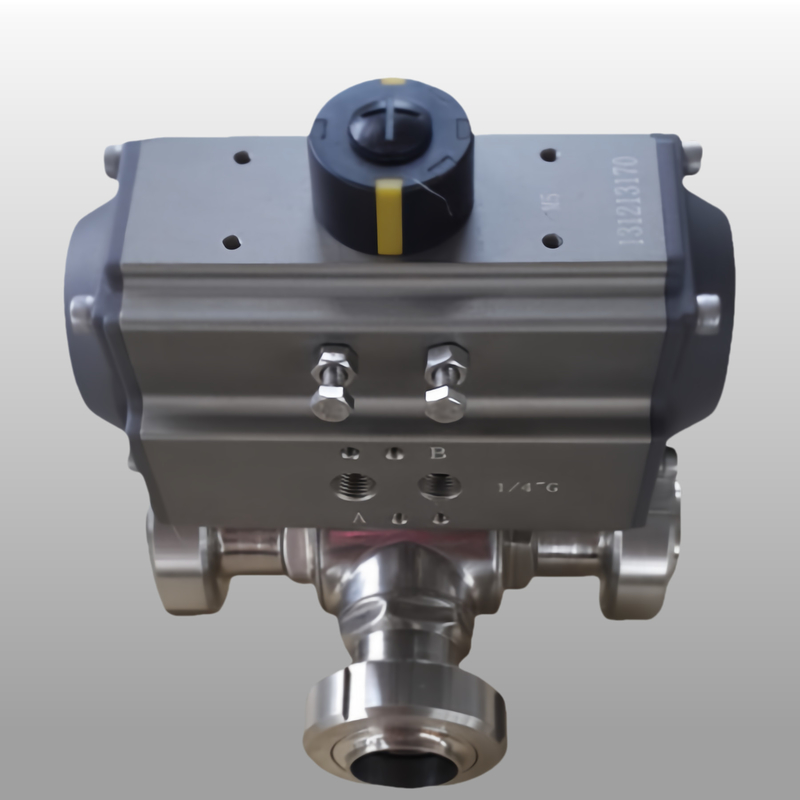

Aluminum Alloy Pneumatic Ball Valve 90 Degree Single Acting Actuator Valve
|
Aluminum Alloy Pneumatic Ball Valve 90 Degree Single Acting Actuator Valve
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001.SIL3 |
| Model Number | AT |
Product Details
Product Name:
Pneumatic Ball Valve
Body Material:
Aluminum Alloy
Power:
Pneumatic
Size:
32 To 400
Type:
Double Action .Single Action
Structure:
Rack And Pinion
Mounting:
ISO5211, DIN3337, Namur Standards
Valve Compatibility:
Ball Valve .Butterfly Valve
Highlight:
Aluminum Alloy Pneumatic Ball Valve
,90 Degree Single Acting Actuator Valve
,Aluminum Alloy Single Acting Actuator Valve
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
Aluminum Alloy Pneumatic Ball Valve 90 Degree Single Acting Actuator Valve
The Single Action 90 Degree Pneumatic Actuator Ball Valve is designed for mechanical operation of various equipment including dampers, butterfly valves, ball valves, and industrial machines. These air-operated units utilize differential pressure to generate precise 90° rotation for reliable valve control.
Technical Specifications
- Material: Extruded Aluminum alloy
- Rotary Angle: 0~90 degree
- Structure: Rack and pinion rotary actuator
- Working Pressure: 2~8bar
- Surface Treatment: Hard anodizing
- Working Temperature:
- Normal: -20ºC(-4°F) to 80ºC (+176°F)
- High: -15ºC(+5°F) to 150ºC (+302°F)
- Low: -40ºC(-104°F) to 80ºC (+176°F)
- Connection: NAMUR, ISO5211 and DIN3337
- Application: Ball valve, butterfly valve, and rotary machine
- Color Options: Grey, black, sky blue, dark blue, red, orange
Key Features
- Conforms to ISO5211, DIN3337, VDINDE-3854, and NAMUR standards
- Extruded high-intensity aluminum body with hard anodized coating
- Low friction coefficient for swift performance and long life
- Compact, modernized construction with multiple specifications
- High-quality bearings for low friction, high cycle life, and quiet operation
- External stroke adjustment bolts for precise ±5° adjustment
- Available in double acting and single acting (spring return) models
- Multi-function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe mounting and disassembly
- Die-cast aluminum pistons and end caps for strength and light weight
- Various O-ring materials available for high and low temperature applications
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8" | ||
| AT040 | 122 | 60 | 65 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4" |
| AT052 | 147 | 72 | 72 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4" |
| AT063 | 172 | 88 | 83 | 20 | 80 ×30 | 18 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT075 | 184 | 100 | 95 | 20 | 80 ×30 | 20 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT083 | 204 | 109 | 103 | 20 | 80 ×30 | 21 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT092 | 262 | 117 | 109 | 20 | 80 ×30 | 22 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT105 | 268 | 133 | 121 | 20 | 80 ×30 | 26 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4" |
| AT125 | 301 | 155 | 143 | 20 | 80 ×30 | 27 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4" |
| AT140 | 394 | 173 | 152 | 20 | 80 ×30 | 32 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4" |
| AT160 | 458 | 198 | 174 | 20 | 80 ×30 | 34 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4" |
| AT190 | 528 | 232 | 206 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4" | ||
| AT210 | 532 | 257 | 226 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4" | ||
| AT240 | 660 | 291 | 260 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/4" | ||
| AT270 | 740 | 330 | 294 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT300 | 798 | 354 | 336 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT350 | 880 | 408 | 385 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT400 | 950 | 464 | 516 | 30 | 130 ×30 | 60 | 55 | Æ254 | Æ165 | 8-M16 ×25 | M20 ×25 | NAMUR G1/2" |
Product Applications
AT series Pneumatic Actuators are designed for demanding industrial environments including flammable, corrosive, dusty, and high-vibration conditions. These actuators are ideal for automatic control systems in:
- Electric power plants
- Petrochemical facilities
- Metallurgy operations
- Oil and gas processing
- Municipal water systems
- Construction projects
- Drainage systems
- Chemical processing plants
- Mining operations
- Pharmaceutical production
- Food processing
- Scientific research facilities
