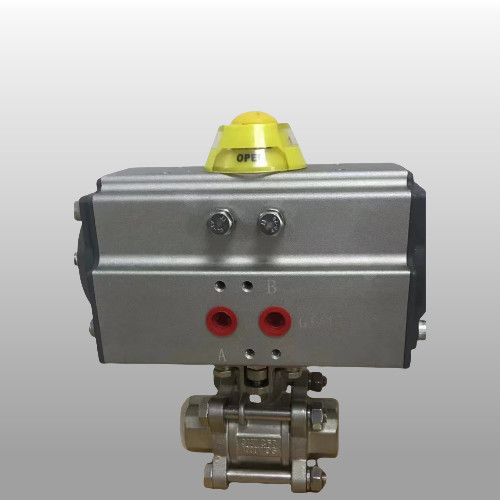

Hard Anodizing Pneumatic Ball Valve Stainless Steel 2 Way Pneumatic Valve
|
Hard Anodizing Pneumatic Ball Valve Stainless Steel 2 Way Pneumatic Valve
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Name:
Pneumatic Ball Valve
Type:
Double Action Spring Return
Material:
Aluminum Alloy
Structure:
Rack & Pinion
Application:
Automatic Control Valve
Power:
Pneumatic
Media:
Hydraulic Oil Or Water
Color:
RAL5021.blue,gray,according To Customer's Requirements,customized
Size:
32mm To 400mm
Highlight:
Hard Anodizing Pneumatic Ball Valve
,Stainless Steel 2 Way Pneumatic Valve
,Stainless Steel Pneumatic Ball Valve
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
Hard Anodizing Pneumatic Ball Valve Stainless Steel 2 Way Pneumatic Valve
Pneumatic Actuator Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | hard anodizing |
| Working Temperature |
Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuator Features
- Full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications
- Extruded high-intensity aluminum body with hard anodized coating for durability
- Low friction coefficient and swift performance
- Compact, modern construction with multiple specifications
- High-quality bearings for low friction, high cycle life, and quiet operation
- External stroke adjustment bolts (±5° adjustment in both directions)
- Available in double acting and single acting (Spring-Return) models
- Multi-function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe installation and removal
- Die-casting aluminum pistons and end caps for strength and light weight
- Various O-ring materials available for different temperature requirements
- Direct solenoid valve mounting without connecting plank
Main Features
- Widely used in ball valves and butterfly valves
- Cost-effective with compact design and long working life
- Available in single acting (spring return) or double acting models
- Standard colors: orange, blue, black, dark gray (OEM colors available)
- Working pressure: 0.3~0.8MPa
- Bottom connection: ISO 5211
- Solenoid valve standard: Namur
- Compatible accessories: limit switch box, solenoid valve, positioner
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8 " |
Product Applications
The AT series Pneumatic Actuator features dual pistons driven by racks and pinions, available in Dual Acting and Spring Return models. Suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions, both indoor and outdoor.
Ideal for auto-control applications in:
- Electric power
- Petrochemical
- Metallurgy
- Oil and gas
- Construction and drainage
- Chemical processing
- Mining
- Power plants
- Pharmaceutical and food industries
- Scientific research
