Rack And Pinion Pneumatic Actuator
>

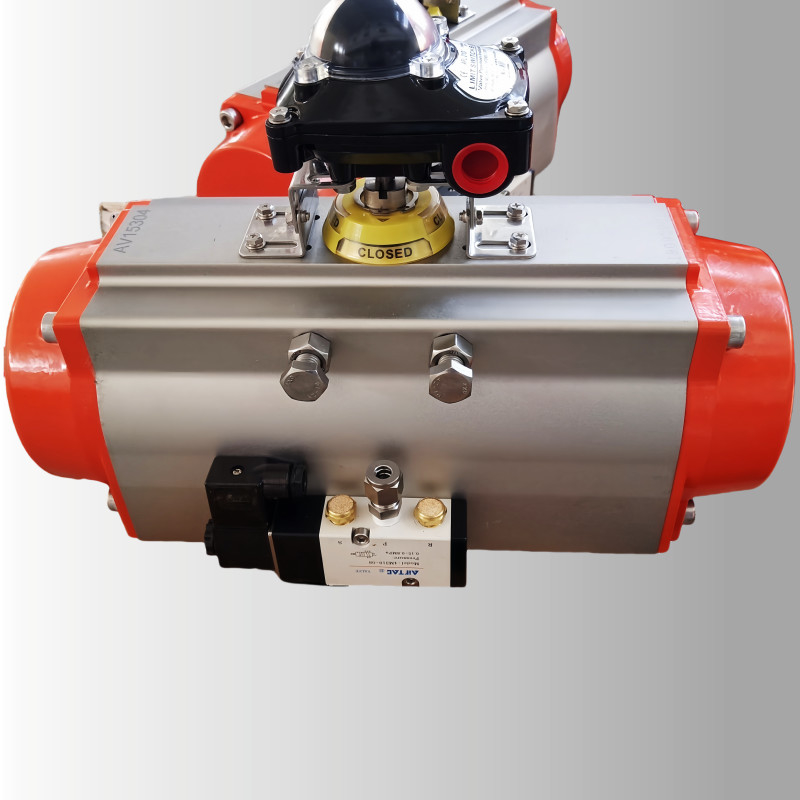

Lightweight Quarter Turn Pneumatic Actuators OEM Control Valve Actuator 90 Degree
|
Lightweight Quarter Turn Pneumatic Actuators OEM Control Valve Actuator 90 Degree
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Name:
Quarter Turn Pneumatic Actuators
Installation Valve:
Butterfly Valves,ball Valve
Type:
Double-acting, Single-acting (spring Return)
Sizes Range:
AT32-AT400
Adjustment Range:
90° ± 5°
Normal Temp:
-20℃-80℃
Highlight:
Lightweight Quarter Turn Pneumatic Actuators
,Quarter Turn Pneumatic Actuators OEM
,Control Valve Actuator 90 Degree
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
Lightweight Quarter Turn Pneumatic Actuators OEM Control Valve Actuator 90 Degree
Rack And Pinion Quarter-Turn Pneumatic Rotary Actuators Control Valves
Pneumatic Actuator Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | hard anodizing |
| Working Temperature |
Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | grey, black, sky blue, dark blue, red, orange |
Pneumatic Actuator Construction
- Indicator: Position indicator with NAMUR for mounting accessories like Limit Switch box and positioner.
- Pinion: High-precision, integrative nickelled-alloy steel, conforming to ISO5211, DIN3337, NAMUR standards.
- Actuator Body: Extruded aluminum alloy ASTM6005 with options for hard anodized, powder polyester painted, PTFE or Nickel plated.
- Endcaps: Die-casting aluminum powder polyester painted in various colors, PTFE or Nickel plated.
- Pistons: Twin rack pistons made from Die-casting aluminum or Cast steel with galvanization.
- Travel adjustment: External travel stop adjustment bolts for ±5° adjustment at both open and close directions.
- High-performance springs: Preloaded coating springs resistant to corrosion with longer service life.
- Bearings & Guides: Low friction, long-life compound material to avoid direct metal contact.
- O-rings: NBR rubber for standard temperatures; Viton or Silicone for high/low temperature applications.
Main Features
- Rack & pinion design
- Compact and light weight
- ISO 5211 mounting pattern
- Adjustable stops for both open and closed positions
- Accessory mounting dimensions to NAMUR specifications
- Machined gear teeth provide longest life and smoother operation
- High cycle life with low friction bearings on all moving and sliding surfaces
- Safety contained springs prevent hazards of inadvertent ejection during maintenance
- Modular design utilizing same body and end caps for both double-acting and spring-return versions
- Corrosion resistant with hard anodized body, PTFE coated end caps, and stainless steel fasteners
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8 " |
Product Application
AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. Available in Dual Acting and Spring Return models, suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions.
Applications include auto-control in electric power, petrochemical, metallurgy, petroleum, gas, construction, drainage, chemical industry, oil refining, mining, power plants, architecture, medicine, food, gas, and scientific research.
