Stainless Steel Pneumatic Actuator
>
Hard Anodizing 90 Degree Pneumatic Actuator SS304 / SS316 Air Valve Actuators
|
Hard Anodizing 90 Degree Pneumatic Actuator SS304 / SS316 Air Valve Actuators
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Product Name:
90 Degree Pneumatic Actuator
Power:
Pneumatic Control
Rotation Angle:
90 Degrees
Metarial:
Stainless Steel 304 Or 316
Size:
52-300
Mounting Type:
NAMUR。ISO5211
Highlight:
Hard Anodizing 90 Degree Pneumatic Actuator
,SS304 Air Valve Actuators
,SS316 Air Valve Actuators
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000USD
Packaging Details
carton box
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description

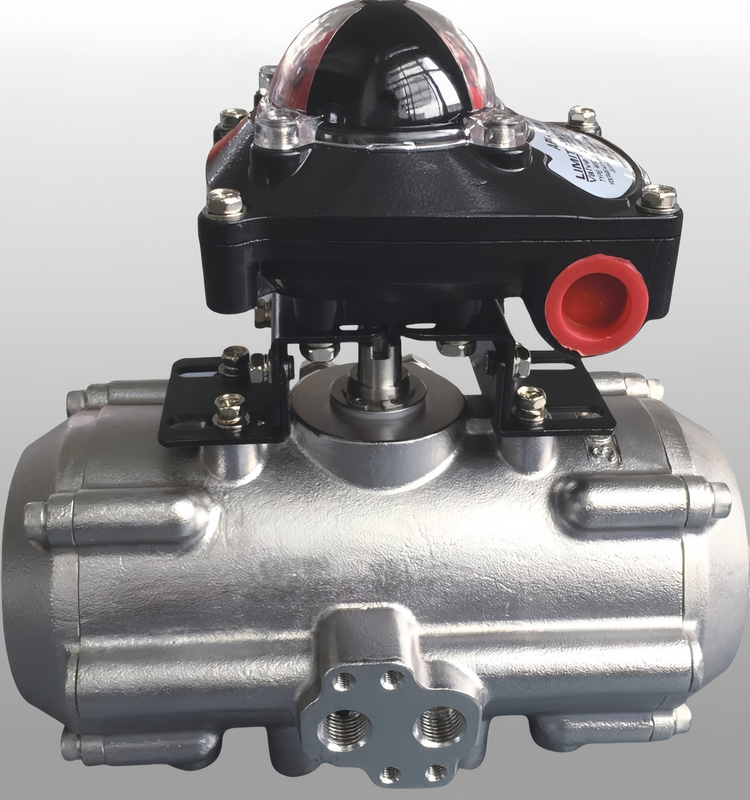

Hard Anodizing 90 Degree Pneumatic Actuator SS304 / SS316 Air Valve Actuators
Stainless Steel Pneumatic Actuator SS304 Or SS316 Air Actuator
Pneumatic Actuator Specifications
| Material | SS304, SS316 |
| Rotary Angle | 0~90 degree |
| Structure | rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | hard anodizing |
| Working Temperature |
Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuators Features
- Full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications
- Extruding high intensity aluminum body with hard anode oxygenation coating
- Low coefficient of friction and swift performance
- Compact and modernized construction with multi specifications
- High quality bearings for low friction, high cycle life, and no noise
- External stroke adjustment bolts for precise ±5° adjustment
- Available in double acting and single acting (Spring-Return) models
- Multi function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe mounting and tear down
- Die-casting aluminum pistons and end caps for high intensity and light weight
- Different O-rings materials available for high and low temperature applications
- Solenoid valves easily mounted without connecting plank
Main Features
- Widely used in ball valves and butterfly valves
- Low cost, compact design, long working life
- Available in single acting (spring return) or double acting models
- Color options: orange, blue, black, dark gray (OEM colors available)
- Working pressure: 0.3~0.8MPa
- Bottom connection: ISO 5211
- Solenoid valve standard: Namur
- Available accessories: limit switch box, solenoid valve, positioner
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8 " | ||
| AT040 | 122 | 60 | 65 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4 " |
Product Application
AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. Available in Dual Acting and Spring Return models, suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions.
Applications include auto-control in electric power, petrochemical, metallurgy, petroleum, gas, construction, drainage, chemical industry, oil refining, mining, power plants, architecture, medicine, food, gas, and scientific research.
